SOUND GENERATOR

Piano Sound: Pure Acoustic Piano Modeling

Max. Polyphony: Piano:Limitless (Solo playing using No.1 to No.8 tones in piano category), Other: 256

Tones: Piano: 20 tones, E.Piano: 18 tones, Organ: 18 tones, Strings/Pad: 27 tones, Synth/Other: 279 tones (including 8 drum sets, 1 SFX set)

AMBIENCE

Pure Acoustic Ambience: Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral, Depth: 11 types

MY STAGE

My Stage: 12 types

KEYBOARD

Keyboard: PHA-50 Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)

SPEAKER SYSTEM

Speakers: Speakers: 8 x 12 cm (3-3/16 x 4-3/4 inches) x 2 (with speaker box), Dome Tweeters: 2.5 cm (1 inches) x 2

Rated Power Output: 25 W x 2, 5 W x 2

HEADPHONES

Headphones: Headphones Acoustic Projection

BLUETOOTH

Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)

MIDI: Bluetooth Ver 4.0

COMPATIBLE ANDROID / IOS APPS (ROLAND)

Compatible Android / iOS Apps (Roland): Roland Piano App, Piano Designer *Support for the app may be terminated without prior notice.

DATA PLAYBACK

Playable Software: Standard MIDI Files (Format 0, 1), Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB flash drive)

RECORDER

Recordable Software: Standard MIDI Files (Format 0, 1 part, Approx. 70,000 notes memory). Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)

INTERNAL SONGS

Internal Songs: 34 Songs

TUNING, VOICING

Touch Sensitivity: Key Touch: 100 types, fixed touch, Hammer Response: 10 types

Master Tuning: 415.3--466.2 Hz (adjustable in increments of 0.1 Hz)

Temperament: 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

Effects: Ambience, Equalizer (3-band digital equalizer). Only for organ tones: Rotary Speaker Effect. Only for E.Piano tones: Modulation Speed

Mic Effects: Compressor, Doubling, Echo

Piano Designer (Settings can be changed on the piano or through the app.): Lid, Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type, Damper Noise, Soft Pedal Type, Single Note Tuning, Single Note Volume, Single Note Character

CONVENIENT FUNCTIONS

Convenient Functions: Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone), Tempo Coach, Auto Tempo, Transpose (Keyboard/Song: in semitones), Registration (45 registrations, capable of pedal shift), Registration Set, Dual, Split (split point adjustable), Twin Piano, Tone Demo, Auto Off

OTHER

Display, Graphic LCD 132 x 32 dots

Control: Volume slider, Equalizer sliders (Low/Mid/High), Part sliders (Lower/Upper), Song Vol. slider, Mic Vol. slider, Speaker switch, Mic Gain knob

Connectors

DC In jack: Pedal (Damper/R, Sostenuto/C 1, Soft/L 1) jacks: TRS 1/4-inch phone type, Input Stereo jack: Stereo miniature phone type, Output (L/Mono, R) jacks: 1/4-inch phone type, Mic Input jack: 1/4-inch phone type , USB Computer port: USB B type (supports USB MIDI/AUDIO), USB Memory port: USB A type, Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type, MIDI (Out, In) connectors, 1: Assignable

Power Supply

AC adaptor

Power Consumption

40W (When using the included AC adaptor)
*Approximate power consumption when playing the piano at medium volume: 14W
Power consumption when sound has not been played after power-on: 12W

ACCESSORIES

Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Power cord, Music rest, Damper pedal (DP-10, capable of continuous detection)

OPTION (SOLD SEPARATELY)

Option (sold separately): Dedicated stand: KSC-90, Dedicated pedal board: KPD-90, Keyboard stand: KS-G8B, KS-11Z, KS-13, KS-20X, Pedal unit: RPU-3, Damper pedal: DP series, Pedal switch: DP-2 (*2), Expression pedal: EV-5, Carrying Bag: CB-88RL, CB-B88V2, SC-G76W3, Headphones: *2 Cannot use for Damper/R.

SIZE & WEIGHT

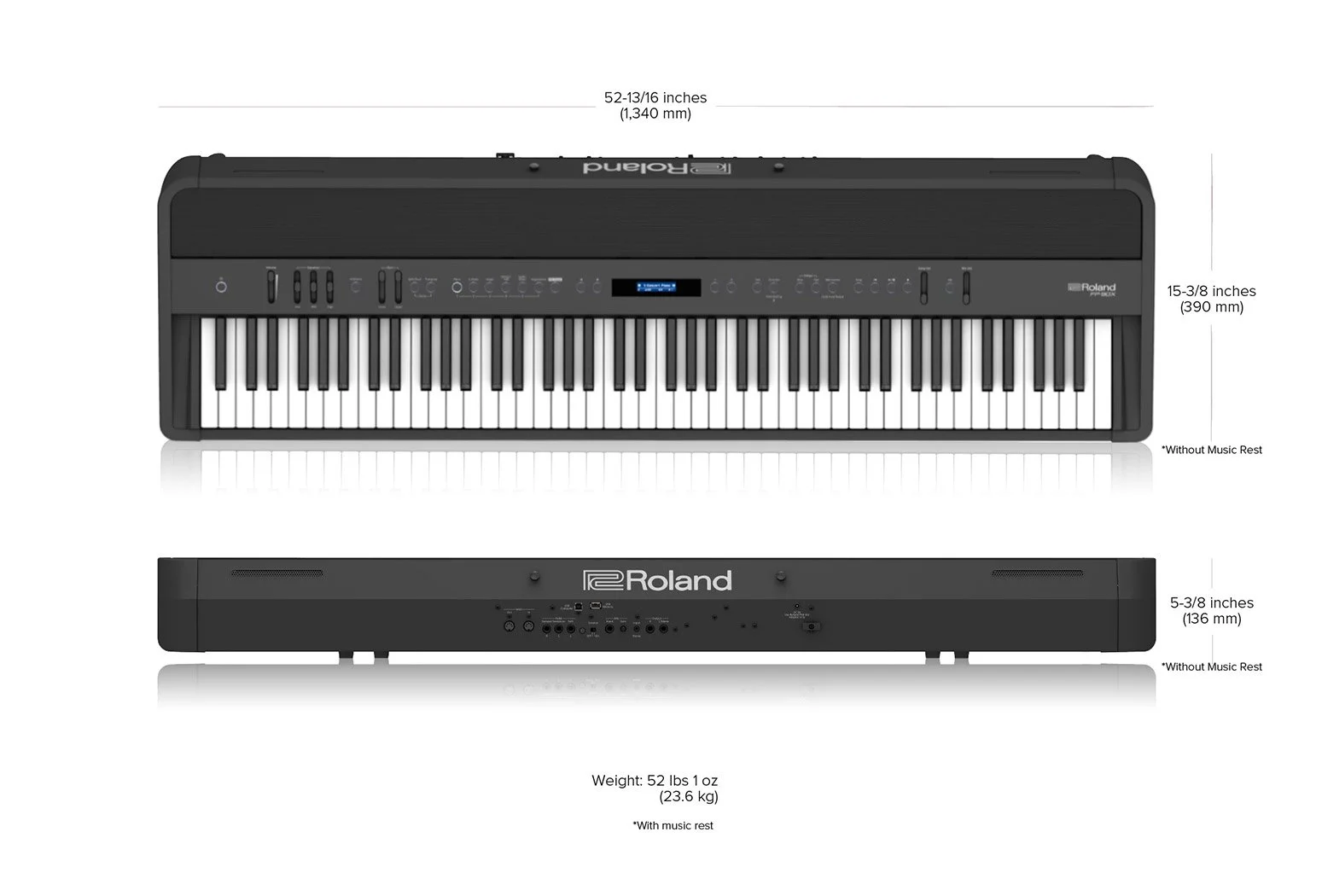

Dimensions, Detached music rest: 1,340 (W) x 390 (D) x 136 (H) mm. FP-90X with KSC-90 and music rest: 1,340 (W) x 418 (D) x 932 (H) mm

Weight: 23.6 kg, (FP-90X with music rest). 37.8 kg, (FP-90X with KSC-90, KPD-90, and music rest)
