SOUND GENERATOR

Piano Sound: Piano Reality Modeling

Max. Polyphony: Piano: Limitless (solo playing using 'Piano' category tones). Other: 256

Tones: Total 324 Tones, Grand: 4 Tones, Upright: 5 Tones, Classical: 5 Tones, E.Piano: 12 Tones, Organ: 12 Tones, Other: 286 Tones

AMBIENCE

Piano Reality Ambience: Type: Studio, Lounge, Concert Hall, Cathedral, Depth: 11 steps

KEYBOARD

PHA-50 Hybrid Keyboard (88 keys Hammer Action Keyboard)
with Escapement, Ebony/Ivory Feel and High Precision Sensing

PEDAL

Damper (Progressive Damper Action Pedal, capable of continuous detection, Damper Modeling)
Soft (capable of continuous detection, function assignable)
Sostenuto (function assignable, with muffler pedal function)

SOUND SYSTEM

Sound System: Piano Reality Projection

Speakers: Cabinet + Spatial Speakers: 12 + 2.5 cm (5 + 1 inches) x 2 (Coaxial Speaker)
Near-field Speakers: 8 cm (3-3/16 inches) x 2

Rated Power Output: 24 W x 2, 21 W x 2

HEADPHONES

Piano Reality Headphones Ambience

CABINET

Music rest: with Music holders
Key cover: Slide type, with Keyboard Lid Switch

TUNING, VOICING

Touch Sensitivity: Key Touch: 100 steps, fixed touch, Hammer Response: Off, 10 steps

Master Tuning: 415.3--466.2 Hz (adjustable in increments of 0.1 Hz)

Temperament: 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

Effects: Brilliance

Piano Designer: Lid, Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Damper Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type, Damper Modeling, Single Note Tuning, Single Note Volume, Single Note Character

INTERNAL SONGS

Internal Songs: Total 394 songs, Listening: 27 songs, Ensemble: 30 songs, Entertainment: 20 songs, Do Re Mi Lesson: 30 songs, Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

DATA PLAYBACK

Playable Software: Standard MIDI Files (Format 0, 1), Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps--320 kbps, requires USB flash drive)

RECORDER

Recordable Software: Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory), Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)

BLUETOOTH

Bluetooth: Bluetooth Ver 5.0, Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), CODEC: SBC (Supports SCMS-T content protection)

COMPATIBLE ANDROID/IOS APPS (ROLAND)

Compatible Android/iOS Apps (Roland): Roland Piano App

CONVENIENT FUNCTIONS

Convenient Functions: Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns), Dual, Split, Twin Piano (with Individual Mode), Transpose (in semitones), Speaker volume and Headphones volume automatically select function, Speaker Auto Mute, Volume limit function, Panel Lock, Panel Off, Auto Off

OTHER

Display: Graphic LCD 128 x 64 dots

Connectors: DC In jack, Input jacks: Stereo miniature phone type, Output (L/Mono, R) jacks: 1/4-inch phone type, USB Computer port: USB B (compatible with USB MIDI/Audio), USB Memory port: USB A, Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Power Supply: AC adaptor

Power Consumption: 31 W (when using the included AC adaptor). * Approximate power consumption when playing the piano at the center value of the volume: 17 W. * Power consumption when sound has not been played after power-on: 16 W. * Power consumption when in OFF mode (when the power automatically turns off): 0.2 W

Accessories: Owner's Manual, "Roland Piano Masterpieces", Leaflet "USING THE UNIT SAFELY", AC adaptor, Power cord, Headphone hook

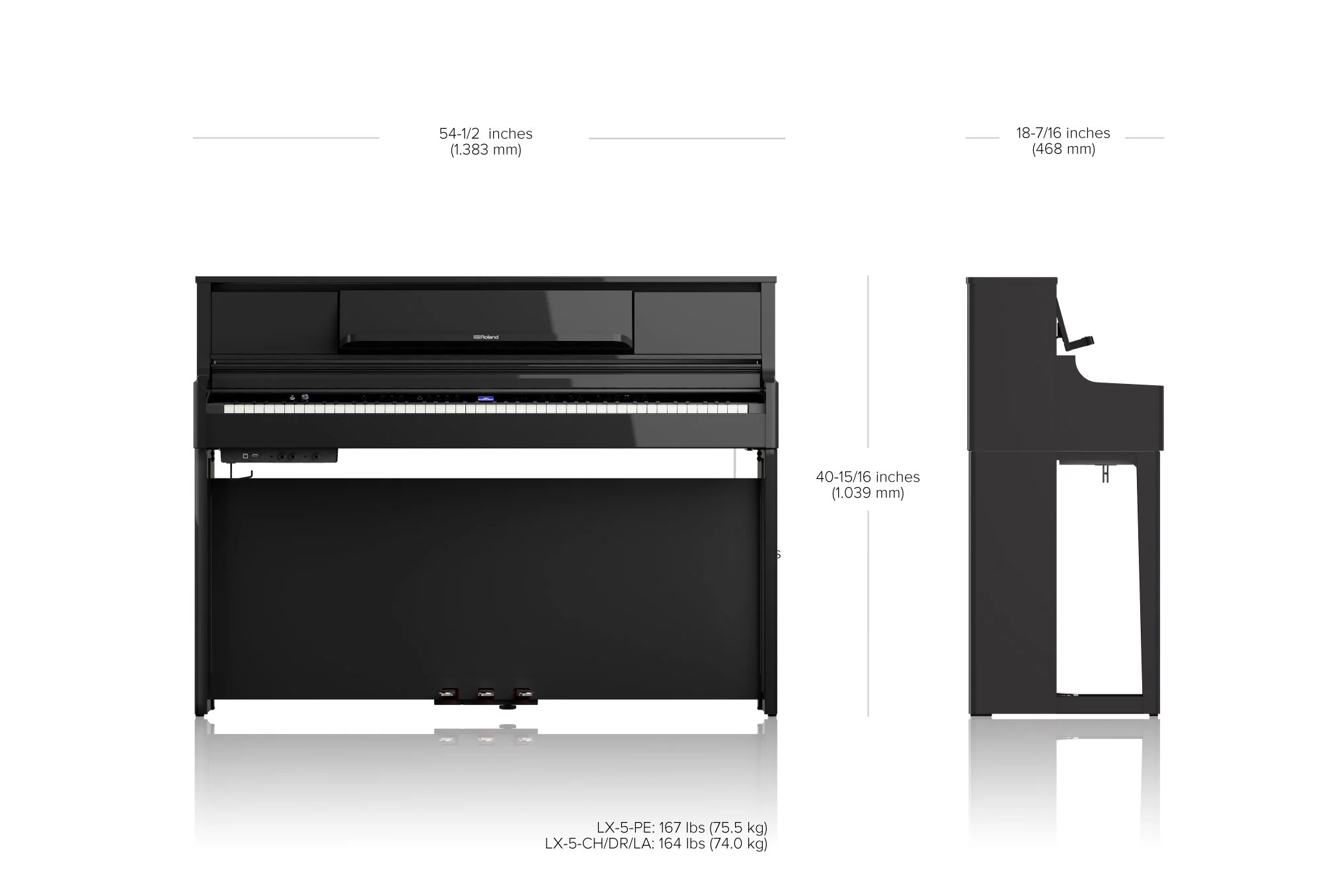

SIZE AND WEIGHT

Width: 1,383 mm

Depth: 468 mm

Height: 1,039 mm

Weight: LX-5-PE: 75.5 kg
LX-5-CH, LX-5-DR, LX-5-LA: 74.0 kg
